Description
This is the MKS HBL850 Brushless Titanium Gear High Speed Digital Cyclic Servo.
Specifications:
- Dead Band: 0.0008ms (Default)
- Control System: +Pulse Width Control
- Working Frequency: 1520μs / 333hz
- Operating Voltage: 6 ~ 8.4 Volts
- Operating Temperature Range: -10 to + 60 Degree C
- Operating Speed:
- @6V: 0.1 sec/60° degrees at no load
- @7.4V: 0.079 sec/60° degrees at no load
- @8.4V: 0.071 sec/60° degrees at no load
- Stall Torque:
- @6V: 252 oz-in (18.2 kg/cm)
- @7.4V: 312.46 oz-in (22.5 kg/cm)
- @8.4V: 345.79 oz-in (24.9 kg/cm)
- 360° Modifiable: NO
- Motor Type: Brushless Motor
- Potentiometer Drive: Indirect Drive
- Bearing Type: Dual Ball Bearings
- Gear Type: Metal Gears
- Connector Wire Length: 24.0 cm (9.4 in)

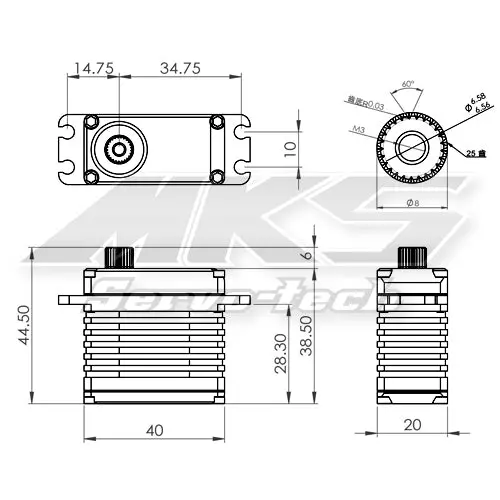

- Dimensions: 40x20x38.5mm
- Weight: 73g
