Description

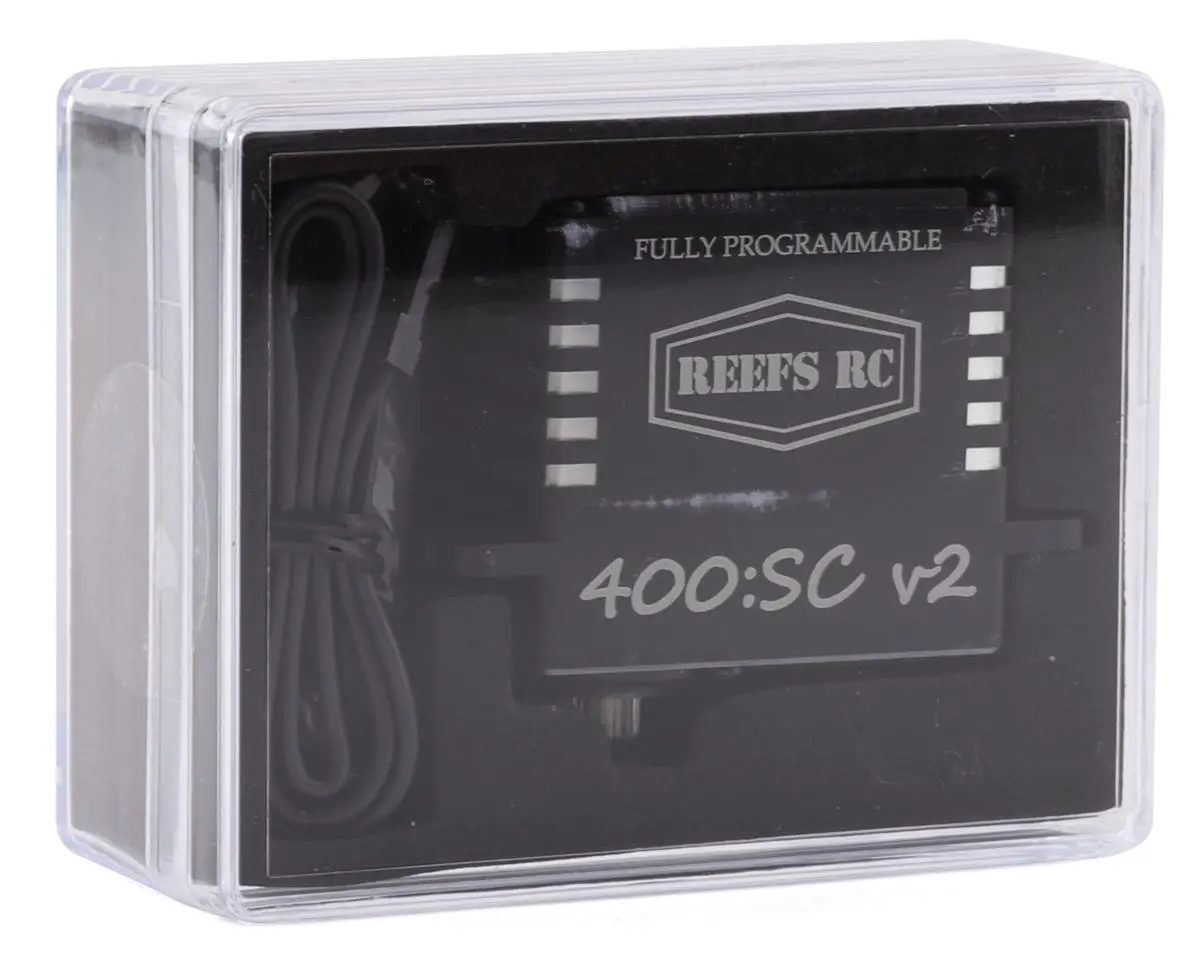

Reefs RC 400:SC V2 High Speed Steel Gear Digital Servo (High Voltage)

Reefs RC 400:SC V2 High Speed Steel Gear Digital Servo. This Reefs servo features an all aluminum case and steel gears. Package includes one servo, two plastic servo horns and mounting hardware.
Features:

• Water Resistant
• Magnetic Angle Sensor
• Pulse Width Modulation (PWM) Control
• Fully Programmable with Reefs Software

Specifications:

• Voltage: 4.8-8.4V
• Case: Full CNC Aluminum
• Bearing Type: 3 Ball Bearing
• Weight: 2.85oz
• Dimension: 1.57×0.78×1.5″ (LWH)
• Torque:
• 6.0V: 344oz-in
• 7.4V: 400oz-in
• 8.4V: 427oz-in
• Speed:
• 6.0V: 0.088 sec/60°
• 7.4V: 0.074 sec/60°
• 8.4V: 0.070 sec/60°
• Spline: 25T
• Dead Band Width: 2¦Ìs

NOTE: BEC not required, but is recommended.

This product was added to our catalog on February 22, 2019
